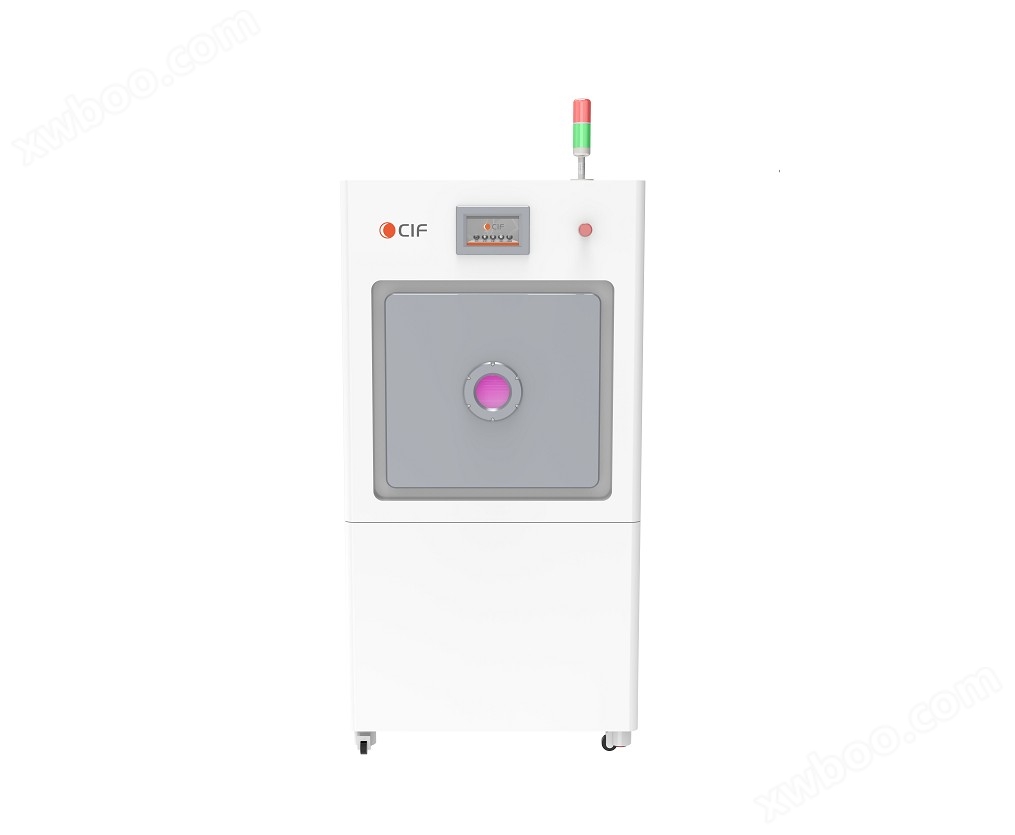

CIF Pilot Production Plasma Cleaning Machine CPC15/35/80/150

Category： Plasma Cleaners

Message

Surface Modification

Plasma Cleaners Ultraviolet Ozone Cleaners

Photoresist Removal

Plasma Strippers

Etching

Plasma Etchers

Coating

Gel Driers Spin Coaters Plasma Sputtering Coaters

Product Parameters

The CPC Series production plasma cleaners by CIF are specifically designed to cater to the needs of both R&D and industrial customers. With their versatile configurations and a vacuum chamber featuring a layered design, the CPC series plasma cleaning machines prove highly adaptable for variou production scenarios. These state-of-the-art machines from CIF excel in plasma cleaning, activation,etching, and other applications while demonstrating exceptional stability, performance, repeatability, and uniformity even in challenging environments.

Attribute: Product Name; Model; Manufacturer Nature; Visits; Time

Details: CIF Pilot Production Plasma Cleaning Machine CPC15/35/80/150; CPC15/35/80/150; Manufacturer; 733次; 2024-03-18

Products Details

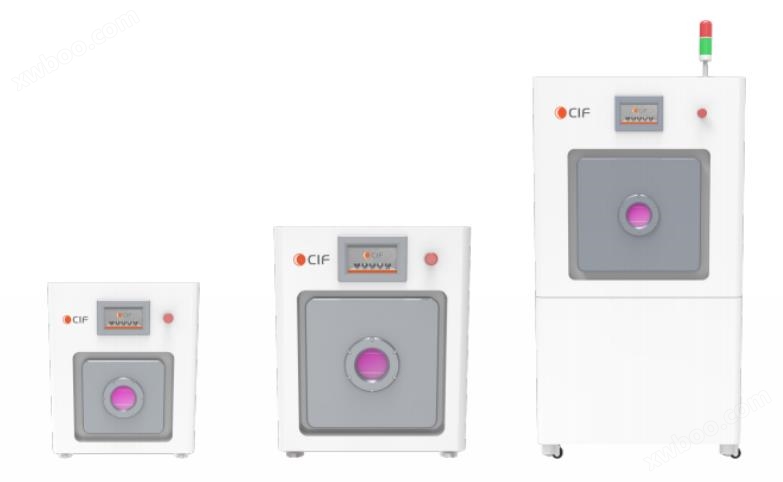

CPC15 CPC35 CPC80/150

Function & Features

1. Intuitive Operation Features a 7-inch color touch screen with Chinese and English bilingual interface for user-friendly operation.

2. PLC Intelligent Control The industrial PLC supports manual and automatic modes for full-process automation. It can store 20 groups of process formulas, with functions for data storage, export and full traceability to realize intelligent production management.

3. Dual Vacuum Control Vacuum pressure can be precisely controlled by two methods: gas flow regulation or chamber pressure regulation, enabling flexible and intelligent process operation.

4. Precise Gas Control Equipped with mass flow meters to ensure high-precision gas control. The standard unit comes with a dual-channel gas system, while multi-channel gas circuits are available as an option. It is applicable to various process gases, including oxygen, argon, nitrogen, carbon tetrafluoride and hydrogen.

5. Shower-Type Air Distribution The multi-channel uniform air intake structure solves the uneven airflow issue of conventional single-hole design, ensuring uniform and stable processing results.

6. Contamination Prevention HEPA high-efficiency filters combined with gas back-purging effectively prevent secondary pollution.

7. Durable Structure The vacuum chamber and all pipelines are manufactured from 316 stainless steel, which is clean and corrosion-resistant to guarantee process purity.

8. Compact Layout Compact and rational design reduces floor space occupancy.

9. Wide Applicability Suitable for processing samples of various materials, shapes and dimensions.

10. Stable & High Efficiency High processing efficiency, together with superior process repeatability and consistency, guarantees stable mass production.

11. Low Temperature & Energy Saving Low-temperature non-destructive treatment. The dry process produces zero emissions and delivers high working efficiency.

12. Safety Protection Multiple safety protections are configured, including door interlock power-off and controllable pressure relief. Operation status indicators are also installed to safeguard operators and equipment.
